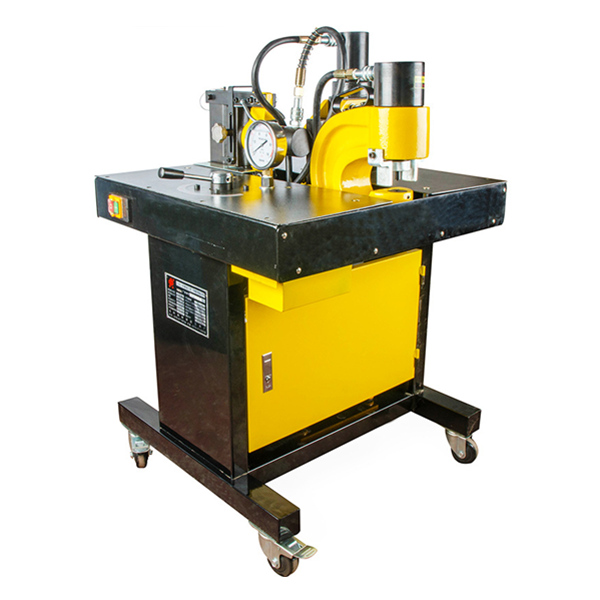

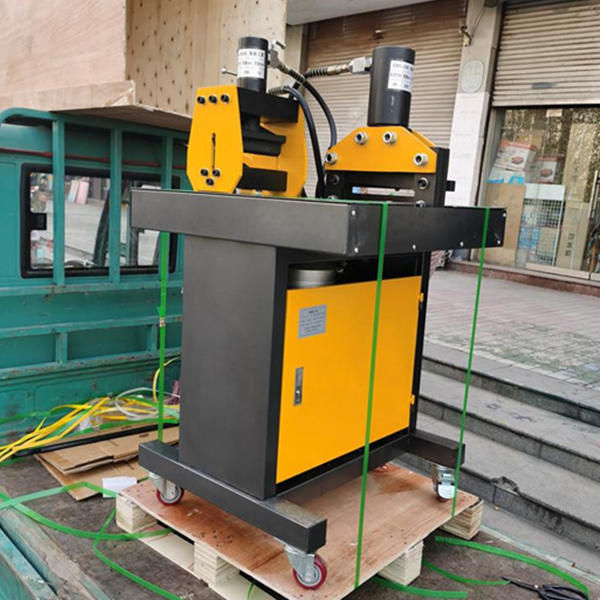

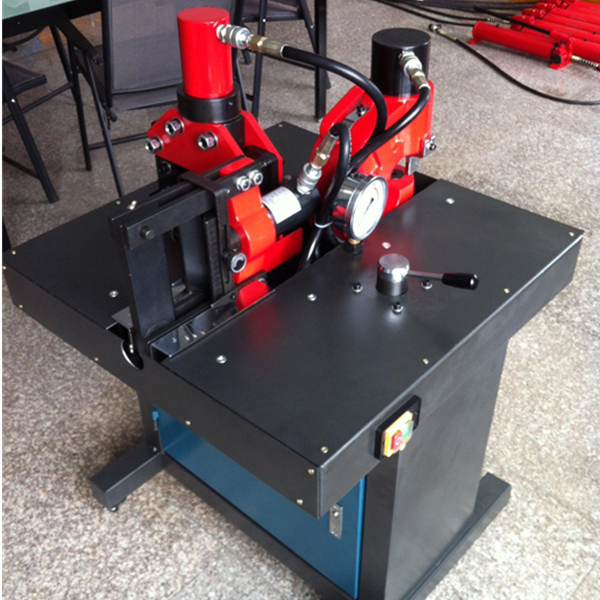

DHY-200 portable manual hydraulic busbar bending machine
Number: DHY-200
Function: punching
Type: CH-70
Maximum pressure of punching: 36 tons
Maximum thickness of punching Copper: 12mm, steel:10mm
Mould parameter: 3/8″(ф10.5mm2),1/2″(ф13.8mm2),5/8″(ф17.5mm2),3/4″(ф20.5mm2)
Weight: 37KG
Oversize(cm): 27*39*16
Specifications:
This is a busbar bending machine with a professional design combining multiple functions. perfect design avoids manpower waste and saves working hours; the machine is easy to operate and highly improves working efficiency. The manual control directional valve can deploy the functions of each working machine, and the same person can operate the foot switch. The equipment includes an electric hydraulic pump, cutting machine, punching machine, and bending machine.
1. overall modeling color bright, surface baking paint, and the phosphoric acid skin mold antirust treatment, wear-resistant and impact.
2. mirror surface of the working face, the desktop through grinding and chromium plating, presenting a precise and smooth working face.
3. Quartet valve control switch precision guide, correct use of the punching machine, curved plate tool, cutting tool, and hydraulic pressure embossing tool position.
4. safe and solid electric pump switch, which can control and return oil.
5. design of copper scrap integrated bag and opened his mouth and a chip outlet, the slide type can be cut, wear a copper scrap, not scattered and messy everywhere.
The bottom of the 6. product is equipped with a pulley, and the pulley is equipped with a foot switch so that the operator can move to the best work site and fix the product.
7. for the convenience of the operator, the product adds a tool cabinet in the design so that the tool storage avoids misplacing and loss of tools.
why choose us
high quality with a long service time of our machine.
Many big factories use our busbar machines, such as state gird, Schneider and howo truck group, and the world’s top 500 enterprise.
| Name | Portable busbar machine(Combined type) |
| Number | DHY-200 |
| Function | punching |
| type | CH-70 |
| Maximum pressure of punching | 36 tons |
| Maximum thickness of punching | Copper:12mm, steel:10mm |
| Mould parameter | 3/8″(ф10.5mm2),1/2″(ф13.8mm2),5/8″(ф17.5mm2),3/4″(ф20.5mm2) |
| Weight | 37KG |
| Oversize(cm) | 27*39*16 |
| Type | CWC-200 |
| Function | shearing |
| Maximum pressure of shearing | 30 ton |
| Maximum thickness of shearing | Copper:12mm, steel:10mm |
| Maximum width of shearing | 200mm |
| weight | 26KG |
| Oversize(cm) | 33*44*20 |
| Type | CB-200A |
| function | Horizontal bend |
| Maximum pressure of bending | 30 ton |
| Maximum thickness of bending | Copper:12mm, steel:10mm |
| Maximum width of bending | 200mm |
| weight | 29KG |
| Oversize(cm) | 29*38*20 |
| Name | Electric pump |
| Maximum pressure | 70Mpa |
| minimum | 7 Mpa |
| power | 750W |
| rate | 50HZ/60Hz |
| Oil storage | 7L |
| High-Pressure flow | 0.9L/min |
| Low-Pressure flow | 5.0L/min |
| voltage | 220V |
| speed | 1400r/min |
| Oil type | Antiwear hydraulic oil |
| Oversize(cm) | 36*43*28 |
| weight | 24KG |
| whole dimension | 1200mmx1300mmx800mm |
| Total weight | 210KG |
